МИКРОСХЕМЫ ДРАЙВЕРОВ ЭЛЕКТРОДВИГАТЕЛЕЙ И СИЛОВЫХ MOSFET/IGBT
|
|
|
|
|
|
|
|
Артикул ИМС
|
Фукциональное назначение драйвера
|
Напряжение смещения макс VOFFSET(max)
|
Втекающий/ вытекающий ток IO+/-(typ.)
|
Входное напряжение управления Vin
|
Время включения/ выключения Ton/Off(typ.)
|
Мертвое время Deadtime(typ.)
|
Фазирование выходного напряжения относительно входного OUT phase
|
Корпус
|
Crossreference
|
|
PN7113
|
High And Low Side Driver
|
600V
|
3.0/4.0A
|
10V~20V
|
170&150ns
|
-
|
LO/HO in phase with LIN/HIN
|
SOP16 QFN16
|
-
|
|

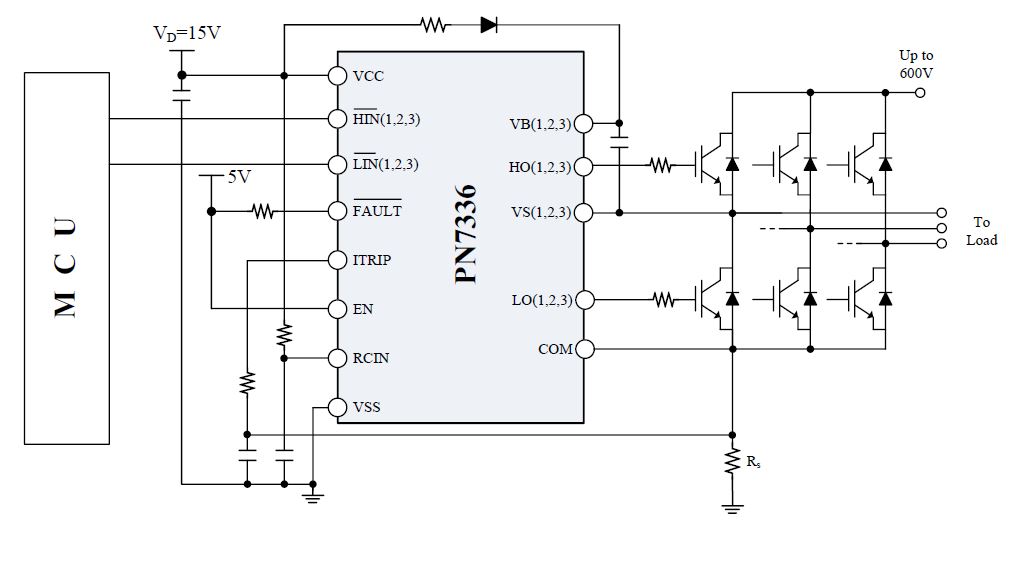

PN7336
|
3-Phase Bridge Driver
|
600V
|
200/350mA
|
10V~20V
|
540&540ns
|
300ns
|
LO1,2,3/HO1,2,3 out of phase with LIN1,2,3/HIN1,2,3
|
SOP28
|
-
|
|
PN7762
|
2-Phase Low Side Driver
|
24V
|
5/5A
|
4.5V~24V
|
7&7ns
|
-
|
-
|
DFN3×3/SOP8
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
Артикул ИМС
|
Фукциональное назначение драйвера
|
Напряжение смещения макс VOFFSET(max)
|
Втекающий/ вытекающий ток IO+/-(typ.)
|
Входное напряжение управления Vin
|
TPLH/TPHL
|
Мертвое время Deadtime(typ.)
|
Ток в спящем режиме ISLEEP
|
Корпус
|
Ссопротивление канала силового MOSFET во включенном состоянии
|
|
PN7703C
|
2-Phase Bridge Driver
|
9V
|
1.5A
|
1.8V~8V
|
100&100ns
|
250ns
|
100nA
|
DFN2×2/ SOP8
|
0.8Ω
|
|
PN7703M
|
2-Phase Bridge Driver
|
9V
|
1.5A
|
1.8V~8V
|
100&100ns
|
250ns
|
100nA
|
SOP8
|
0.8Ω
|
|
PN7703L
|
2-Phase Bridge Driver
|
9V
|
1.5A
|
1.8V~8V
|
100&100ns
|
250ns
|
100nA
|
SOT23-6
|
0.8Ω
|
|
PN7705
|
2-Phase Bridge Driver
|
32V
|
3A
|
6.5V~28V
|
1500ns
|
1000ns
|
100nA
|
SOP8
|
1Ω
|
|
PN7706
|
2-Phase Bridge Driver
|
36V
|
3A
|
2.7V~24V
|
900&900ns
|
350ns
|
10uA
|
SOP8-PP
|
0.6Ω
|
|
PN7707
|
2-Phase Bridge Driver
|
36V
|
1.75A
|
3~24V
|
900&900ns
|
350ns
|
10uA
|
SOP8-PP
|
0.6Ω
|
|
PN7709
|
2-Phase Bridge Driver
|
40V
|
1.75A
|
6~38V
|
700&700ns
|
250ns
|
10uA
|
SOP8-PP
|
-
|
|
PN7713
|
4-Phase Bridge Driver
|
20V
|
2A
|
2.7V~18V
|
900&900ns
|
350ns
|
10uA
|
TSSOP16-PP
|
0.5Ω
|
|
PN7715
|
4-Phase Bridge Driver
|
32V
|
1.5A
|
3~20V
|
1400&1400ns
|
1000ns
|
100nA
|
SSOP10L
|
1Ω
|
|
PN7719
|
4-Phase Bridge Driver
|
32V
|
1.5A
|
3~20V
|
1400&1400ns
|
1000ns
|
100nA
|
SSOP10L
|
1Ω
|
|
PN7735
|
4-Channel Low-Side Driver
|
65V
|
2.5A
|
7.5-60V
|
-
|
NA
|
-
|
HTSSOP16
|
0.45Ω
|
|
PN7736
|
4-Channel Low-Side Driver
|
65V
|
2.5A
|
7.5-60V
|
-
|
NA
|
-
|
HTSSOP16
|
0.45Ω
|
|
|
|
|
|
|
|
|
|
|
|
|
Артикул ИМС
|
Фукциональное назначение драйвера
|
Напряжение смещения макс VOFFSET(max)
|
Втекающий/ вытекающий ток IO+/-(typ.)
|
Диапазон напряжения питанияVCC Range
|
Время включения/ выключения Ton/Off(typ.)
|
Мертвое время Deadtime(typ.)
|
Фазирование выходного напряжения относительно входного OUT phase
|
корпус
|
Cross reference
|
|
ID1037
|
Motor Driver
|
11V
|
1A
|
0-11V
|
200ns/60ns
|
NA
|
H-Bridge
|
SOP8/ DFN2x2-8L
|
-
|
|
ID1127
|
Low Side Driver
|
18V
|
3.5A/3.7A
|
4.8-18V
|
15ns/15ns
|
NA
|
Dual low side
|
SOP8
|
-
|
|
ID1123D
|
LVIC
|
18V
|
3A/3.5A
|
4.8-15V
|
80ns/20ns
|
Adaptive Time
|
Single-Phase
|
DFN3x3-8L/SOP8
|
-
|
|
ID7S0230
|
LVIC
|
18V
|
3A/3.5A
|
4.8-15V
|
230ns/100ns
|
Adaptive Time
|
Single-Phase
|
DFN3x3-8L
|
-
|
|
ID7T0610AD
|
LVIC
|
60V
|
1A/1A
|
7-15V
|
40ns/40ns
|
180ns
|
Single-Phase
|
QSOP24
|
-
|
|
ID7S210AD
|
LVIC
|
200V
|
1A/1A
|
5-20V
|
180ns/150ns
|
150ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID7S210ADD
|
LVIC
|
200V
|
1A/1A
|
5-20V
|
180ns/150ns
|
150ns
|
Single-Phase
|
DFN2x3
|
-
|
|
ID7S210BD
|
LVIC
|
200V
|
1A/1A
|
5-20V
|
180ns/150ns
|
150ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID2005
|
LVIC
|
200V
|
1A/1A
|
6-18V
|
150ns/110ns
|
300ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID2006
|
LVIC
|
200V
|
1A/1A
|
6-18V
|
150ns/110ns
|
300ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID2016
|
LVIC
|
200V
|
1A/1A
|
5-20V
|
150ns/150ns
|
200ns
|
3-Phase
|
TSSOP20
|
-
|
|
ID2018
|
LVIC
|
200V
|
1A/1A
|
5-20V
|
150ns/150ns
|
200ns
|
3-Phase
|
QSOP24
|
-
|
|
ID5S609
|
HVIC
|
600V
|
400mA/800mA
|
10-20V
|
160ns/150ns
|
250ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID5S609F1
|
HVIC
|
600V
|
400mA/800mA
|
10-20V
|
160ns/150ns
|
250ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID7U603
|
HVIC
|
600V
|
210mA/360mA
|
10-20V
|
680ns/150ns
|
520ns
|
Single-Phase
|
SOIC8
|
-
|
|
ID7S625
|
HVIC
|
600V
|
2.5A/2.5A
|
10-20V
|
135ns/135ns
|
NA
|
Single-Phase
|
SOIC16W
|
-
|
|
ID7T6035
|
HVIC
|
600V
|
200mA/350mA
|
13.2-20V
|
530ns/530ns
|
200ns
|
3-Phase
|
SOIC28
|
-
|
|
ID7T6036
|
HVIC
|
600V
|
200mA/350mA
|
10-20V
|
530ns/530ns
|
200ns
|
3-Phase
|
SOIC28
|
-
|
|
ID7T6036D
|
HVIC
|
600V
|
200mA/350mA
|
13.2-20V
|
530ns/530ns
|
200ns
|
3-Phase
|
SOIC28
|
-
|
|
ID2206D
|
Half-Bridge Driver Built-in Bootstrap Diode
|
600V
|
210/360mA
|
10V~20V
|
220&180ns
|
150ns
|
Single-Phase
|
SOP8
|
XX2106
|
|
ID2304D
|
Half-Bridge Driver Built-in Bootstrap Diode
|
600V
|
300/600mA
|
10V~20V
|
360&335ns
|
120ns
|
Single-Phase
|
SOP8
|
XX2304
|
|
ID5S605
|
Half-Bridge Driver
|
600V
|
300/600mA
|
10V~20V
|
250&190ns
|
-
|
Single-Phase
|
SOP8
|
XX2101
|
|
ID5S606B
|
Half-Bridge Driver
|
600V
|
300/600mA
|
10V~20V
|
715&170ns
|
500ns
|
Single-Phase
|
SOP8
|
XX2103
|
|
PN734
|
IPM
|
500V
|
2A
|
13.2-20V
|
1.5/1.3us
|
2.4us
|
3-Phase
|
DIP26
|
-
|
|
PM750350T
|
IPM
|
500V
|
3A
|
10V-20V
|
750/850ns
|
1us
|
3-Phase
|
SOP23
|
-
|
|
PM750550DT
|
IPM
|
500V
|
5A
|
10V-20V
|
750/850ns
|
1us
|
3-Phase
|
SOP23
|
-
|
|
PM731060DT
|
IPM
|
600V
|
10A
|
13.2-20V
|
1/1.1us
|
NA
|
3-Phase
|
DIP25
|
-
|
|
|
|
|
|
|
|
|
|
|
|
