IGBT модули средней мощности

IGBT модули средней мощности от StarPower купить в ЕвроМобайл
IGBT модули средней мощности от StarPower купить в ЕвроМобайл
IGBT модули средней мощности от StarPower купить в ЕвроМобайл

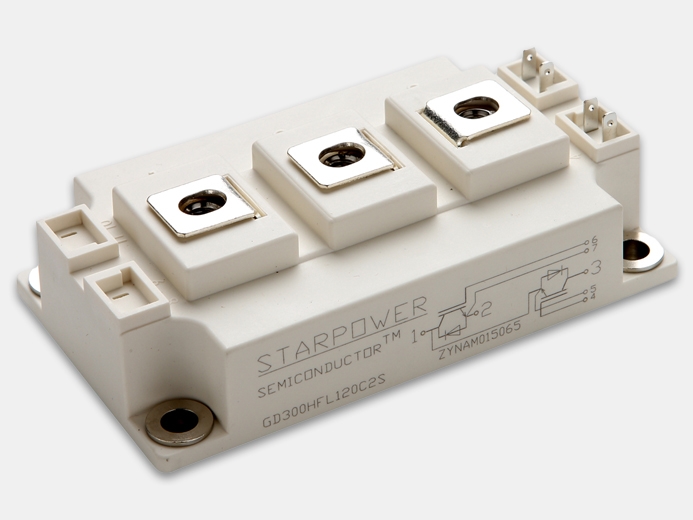

IGBT модули средней мощности - изображение

Производитель: StarPower

IGBT модули средней мощности: рабочие напряжения Uce-=650 В,1200 В, 1700 В. Токи коллектора 50….600 А.
Артикул  Корпус Ток, А  Питание, В  Технологии чипа  Структурная схема
GD50HFY120C1S
 C1.0 50 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD50HFK120C1S
 C1.0 50 1200 NPT Low Loss Half Bridge
GD50HFU120C1S
 C1.0 50 1200 NPT Ultra Fast IGBT Half Bridge
GD50HCU120C8S
 C8.2 50 1200 NPT Ultra Fast IGBT H Bridge
GD50HFX65C1S
 C1.0 50 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD50HFX170C1S
 C1.0 50 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD75HFY120C1S
 C1.0 75 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD75HFK120C1S
 C1.0 75 1200 NPT Low Loss Half Bridge
GD75HFU120C1S
 C1.0 75 1200 NPT Ultra Fast IGBT Half Bridge
GD75HCU120C8S
 C8.2 75 1200 NPT Ultra Fast IGBT H Bridge
GD75HFX65C1S
 C1.0 75 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD75HFX170C1S
 C1.0 75 1700 Trench FS IGBT
Low Loss 		Half Bridge
GD100HFY120C1S
 C1.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD100HFY120C2S
 C2.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD100HFY120C8S
 C8.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD100HFK120C1S
 C1.0 100 1200 NPT Low Loss Half Bridge
GD100HFK120C2S
 C2.0 100 1200 NPT Low Loss Half Bridge
GD100HFU120C1S
 C1.0 100 1200 NPT Ultra Fast IGBT Half Bridge
GD100HFU120C2S
 C2.0 100 1200 NPT Ultra Fast IGBT Half Bridge
GD100HFU120C8S
 C8.0 100 1200 NPT Ultra Fast IGBT Half Bridge
GD100CUY120C1S
 C1.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD100CLY120C1S
 C1.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD100CUY120C2S
 C2.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD100CLY120C2S
 C2.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		Buck Chopper
GD100HFX65C1S
 C1.0 100 650 Trench FS IGBT, Low Loss Half Bridge
GD100HFX170C1S
 C1.0 100 1700 Trench FS IGBT, Low Loss Half Bridge
GD100HFX170C2S
 C2.0 100 1700 Trench FS IGBT, Low Loss Half Bridge
GD100FTY120C6S
 C6.0 100 1200 Advanced Trench FS IGBT,
Low Loss 		NPC2
GD150HFY120C1S
 C1.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD150HFY120C2S
 C2.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD150HFY120C8S
 C8.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD150HFY120C8SN
 C8.1 150 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD150HFK120C2S
 C2.0 150 1200 NPT Low Loss Half Bridge
GD150HFU120C2S
 C2.0 150 1200 NPT Ultra Fast IGBT Half Bridge
GD150HFU120C8S
 C8.0 150 1200 NPT Ultra Fast IGBT Half Bridge
GD150CUY120C1S
 C1.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD150CLY120C1S
 C1.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD150CUY120C2S
 C2.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD150CLY120C2S
 C2.0 150 1200 Advanced Trench FS IGBT,
Low Loss 		Buck Chopper
GD150HFX65C1S
 C1.0 150 650 Trench FS IGBT, Low Loss Half Bridge
GD150HFX170C2S
 C2.0 150 1700 Trench FS IGBT, Low Loss Half Bridge
GD150HFU120C6S
 C6.1 150 1200 NPT Ultra Fast IGBT Half Bridge
GD150CUX65C1S
 C1.0 150 650 Trench FS IGBT, Low Loss Boost Chopper
GD200HFY120C2S
 C2.0 200 1200 Advanced Trench FS IGBT, Low Loss Half Bridge
GD200HFY120C8S
 C8.0 200 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD200HFK120C2S
 C2.0 200 1200 NPT Low Loss Half Bridge
GD200HFU120C2S
 C2.0 200 1200 NPT Ultra Fast IGBT Half Bridge
GD200CUY120C2S
 C2.0 200 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD200CLX65C2S
 C2.0 200 650 Trench FS IGBT, Low Loss Buck Chopper
GD200HFX65C1S
 C1.0 200 650 Trench FS IGBT, Low Loss Half Bridge
GD200HFX65C2S
 C2.0 200 650 Trench FS IGBT, Low Loss Half Bridge
GD200HFX65C8S
 C8.0 200 650 Trench FS IGBT, Low Loss Half Bridge
GD200HFX170C2S
 C2.0 200 1700 Trench FS IGBT, Low Loss Half Bridge
GD200CEY120C2S
 C2.0 200 1200 Advanced Trench FS IGBT,
Low Loss 		Common Emitter
GD200SGY120C2S
 C2.1 200 1200 Advanced Trench FS IGBT,
Low Loss 		Single Switch
GD200HFY65C1S
 C1.0 200 650 Trench FS IGBT, Low Loss Half Bridge
GD200HFQ120C2S
 C2.0 200 1200 Advanced Trench FS Fast IGBT Half Bridge
GD225HFY120C6S
 C6.1 Black 225 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD225HTY120C7S
 C7.0 225 1200 Advanced Trench FS IGBT,
Low Loss 		3 Phase Bridge with NTC
GD225HFX170C6S
 C6.1 225 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD300SGY120C2S
 C2.1 300 1200 Advanced Trench FS IGBT,
Low Loss 		Single Switch
GD300HFY120C2S
 C2.0 300 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD300HFK120C2S
 C2.0 300 1200 NPT Low Loss Half Bridge
GD300HFU120C2S
 C2.0 300 1200 NPT Ultra Fast IGBT Half Bridge
GD300CUY120C2S
 C2.0 300 1200 Advanced Trench FS IGBT, Low Loss Boost Chopper
GD300CLY120C2S
 C2.0 300 1200 Advanced Trench FS IGBT,
Low Loss 		Buck Chopper
GD300HFY120C6S
 C6.1 Black 300 1200 Advanced Trench FS IGBT, Low Loss Half Bridge
GD300HTY120C7S
 C7.0 300 1200 Advanced Trench FS IGBT,
Low Loss 		3 Phase Bridge with NTC
GD300HFX65C2S
 C2.0 300 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD300HFX65C8S
 C8.0 300 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD300HFX65C8SN
 C8.1 300 650 Trench FS IGBT, Low Loss Half Bridge
GD300HFX170C2S
 C2.0 300 1700 Trench FS IGBT, Low Loss Half Bridge
GD300HFX65C6S
 C6.1 300 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD300HFU120C6S
 C6.1 300 1200 NPT Ultra Fast IGBT Half Bridge
GD300MPY120C6S
 C6.1 300 1200 Advanced Trench FS IGBT, Low Loss Half NPC1 Up
GD300MNY120C6S
 C6.1 300 1200 Advanced Trench FS IGBT,
Low Loss 		Half NPC1 Low
GD300HFX170C6S
 C6.1 300 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD300CEY120C2S
 C2.0 300 1200 Advanced Trench FS IGBT,
Low Loss 		Common Emitter
GD300MLX65B3ST
 B3.0 300 650 Trench FS IGBT,
Low Loss 		NPC1
GD300TUX65C2S
 C2 6 TERMINALI 300 650 Trench FS IGBT,
Low Loss 		NPC1 Boost
GD400SGY120C2S
 C2.1 400 1200 Advanced Trench FS IGBT,
Low Loss 		Single Switch
GD400SGU120C2S
 C2.1 400 1200 NPT Ultra Fast IGBT Single Switch
GD400HFY120C2S
 C2.3 400 1200 Advanced Trench FS IGBT, Low Loss Half Bridge
GD400HFU120C2S
 C2.3 400 1200 NPT Ultra Fast IGBT Half Bridge
GD400CLX65C2S
 C2.0 400 650 Trench FS IGBT,
Low Loss 		Buck Chopper
GD400HFX65C2S
 C2.0 400 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD400HFX65C8S
 C8.0 400 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD400HFX65C8SN
 C8.1 400 650 Trench FS IGBT, Low Loss Half Bridge
GD400CUY120C2S
 C2.0 400 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD400CLY120C2S
 C2.0 400 1200 Advanced Trench FS IGBT,
Low Loss 		Buck Chopper
GD400SGX170C2S
 C2.1 400 1700 Trench FS IGBT,
Low Loss 		Single Switch
GD400HFX170C2S
 C2.0 400 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD400CUY65C2S
 C2.0 400 650 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD400MLX65B3ST
 B3.0 400 650 Trench FS IGBT, Low Loss NPC1
GD400CFX65C5S
 C5 400 650 Trench FS IGBT,
Low Loss 		Special Circuit 2
GD400TUX65C2S
 C2 6 TERMINALI 400 650 Trench FS IGBT,
Low Loss 		NPC1 Boost
GD400CLU120C2S
 C2.0 400 1200 NPT ultra Fast IGBT Buck Chopper
GD400HFQ120C2S
 C2.3 400 1200 Advanced Trench FS Fast IGBT Half bridge
GD450HFY120C2S
 C2.0 450 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD450HFY120C6S
 C6.1 Black 450 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD450HTY120C7S
 C7.0 450 1200 Advanced Trench FS IGBT,
Low Loss 		3 Phase Bridge with NTC
GD450HFX65C6S
 C6.1 450 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD450HFX170C6S
 C6.1 450 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD450CEY120C2S
 C2.0 450 1200 Advanced Trench FS IGBT,
Low Loss 		Common Emitter
GD450HTX170C7S
 C7.0 450 1700 Trench FS IGBT,
Low Loss 		3 Phase Bridge with NTC
GD500HFU120C2S
 C2.0 500 1200 NPT Ultra Fast IGBT Half Bridge
GD600SGY120C2S
 C2.1 600 1200 Advanced Trench FS IGBT,
Low Loss 		Single Switch
GD600SGU120C2S
 C2.1 600 1200 NPT Ultra Fast IGBT Single Switch
GD600HFY120C2S
 C2.0 600 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD600HFY120C6S
 C6.1 Black 600 1200 Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD600HFX65C2S
 C2.0 600 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD600CUY120C2S
 C2.0 600 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD600SGX170C2S
 C2.1 600
 1700 Trench FS IGBT,
Low Loss 		Single Switch
GD600HFX65C6S
 C6.1 600 650 Trench FS IGBT,
Low Loss 		Half Bridge
GD600HFY120C6H
 C6.12 600 1200  Advanced Trench FS IGBT,
Low Loss 		Half Bridge
GD600HFX170C6S
 C6.1 600 1700 Trench FS IGBT,
Low Loss 		Half Bridge
GD600CEY120C2S
 C2.0 600 1200 Advanced Trench FS IGBT,
Low Loss 		Common Emitter
GD600CLY120C6S
 C2.0 600 1200 Advanced Trench FS IGBT,
Low Loss 		Buck Chopper
GD600CUY120C6S
 C2.0 600 1200 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper
GD600CUY65C2S
 C2.0 600 650 Advanced Trench FS IGBT,
Low Loss 		Boost Chopper

IGBT модули на блокирующие напряжения Uce-=650 В,1200В,1700В. Номинальные токи коллектора 50….600А. Широкий выбор электрических топологий, включая широко применяемые трёхфазный мост, полумост, одиночный ключ, варианты 3-х уровневых топологий, повышающие и понижающие чопперы для источников питания. Более 10 типов корпусов, включая стандартные 34мм, 62мм и корпуса серии EconoPack.

Области применения:
  • промышленные приводы,
  • сервоприводы,
  • ИПБ,
  • возобновляемая энергетика,
  • трехуровневые инверторные схемы.
